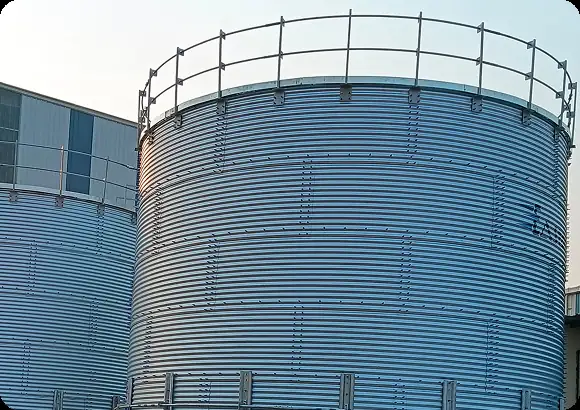

EaStore Tanks Features
- EaStore tanks are prefabricated, pre-engineered & site assembled bolted-panel tanks.
- The outer shell has superior Zincalume coating (Zinc: Aluminum: Silicon) in multiple layers which enhance the self-life of tank.
- The Aluminum in the coating provides barrier protection to the steel whilst the zinc component provides sacrificial cut edge protection.
- The superior quality of food grade reinforced, heavy duty PVC liner secures the potable water for longer durations.
- Cathodic Protection with Magnesium Anodes provides an enhanced life.
- Tanks to have provision for rain water harvesting for high rainfall zones to store in tank with food grade liners.
- Sizes from 15000 to 5000000 Litres.
Accessories –EaStore tanks come with a wide range of accessories
- The tanks are very fast to build compared to RCC tanks and made ready to store water.
- Durable and easily relocated. Multiple tanks staging possible in clusters.
- Light in weight and can be installed on elevated location above ground.
- Tanks are supported by manufacturer’s warranty and design for the 15 years of service life.
- Adaptable to different sites with Different Dia. X height combinations
Benefits
- Easy to Install.
- Can be transported to remote locations with ease.
- Highly durable with 25 years.
- Capacities ranging from 15000 to 5000000 Litres.
EaStore Storage Components
Major Components:

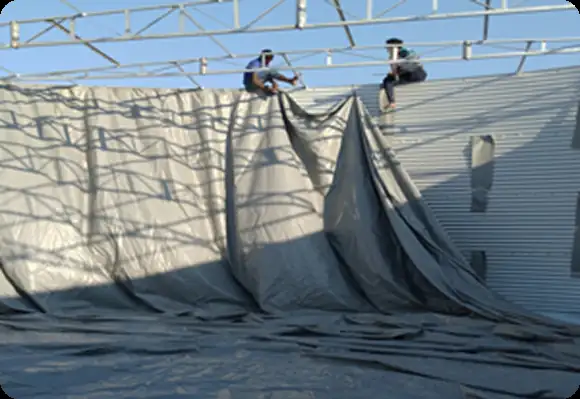

Liner
- Eastore tanks are lined with the finest quality material to make the tank leak proof and to keep the water healthy and fresh. Our liner is made from food grade fibre reinforced PVC. The polyester scrim adds extra strength to the liner making it shear and puncture resistant, thus avoiding leakage of water and easier in maintenance. The liner is protected from puncture by the geotextile spread at the bottom of the tank making it more durable.
Liner Specifications
- PVC/PE reinforced
- 760 GSM onwards
- 0.8 mm thick
- Food Grade
- Anti-Algae
- UV Stabilised
- PVC can be permanently bonded to the multifilament woven scrim.
- Shear resistant
- Puncture resistant
- High tensile strength
- Tested by NABL approved lab for food grade and super chlorination

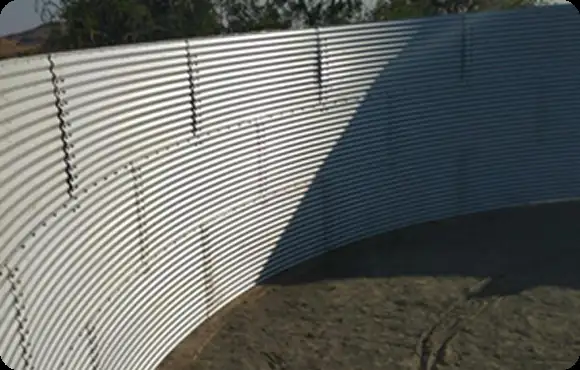

Zinc-Aluminum Panels
- EaStore tanks are manufactured from highest quality ZincAlume by Tata Bluescopesteel or Jindal Steel. Zinc Aluminum alloy comprises 43.5 % Zinc and 55% aluminium and 1.5% Silicon which has more strength than galvanised steel. This provides excellent corrosion resistance and resistance to peeling and cracking under varying climatic conditions.

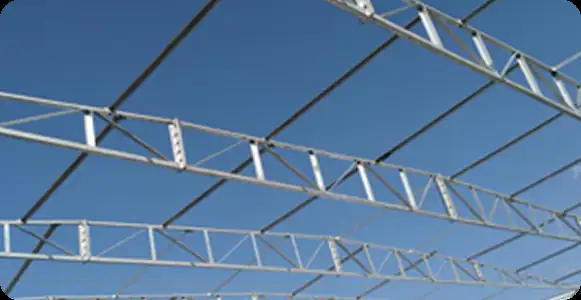

Trusses
- Our trusses are manufactured from highest quality Hot dip galvanized steel (IS 1367).We use superior and innovative soft wares and engineering expertise to design the trusses as they play a critical part in structural stability of the tanks.
